Interface
The Interface handles the visual and communicative aspects of the tour, serving as the most effective means to capture and hold the viewer's attention.
Functionality

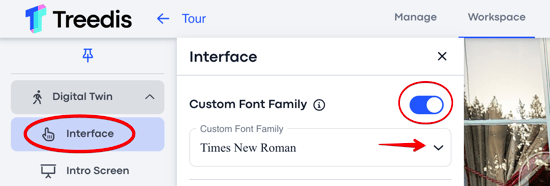

Custom Font Family
This option allows you to select the text font for the tour. You can choose any one available in the list:
Note: Custom Font Family feature is available for Business and Enterprise plan users. However, similar functionality is present in the Intro Screen section, available for all types of subscription.
Background Color
Background color allows you to choose any color for the Dollhouse and Floor Plan modes, replacing the default black:
Interface Video
This option allows to insert a video into your tour by adding a link (YouTube or Vimeo URL). You can adjust the video size and enable Autoplay if you want a video to start playing automatically upon entering the tour.
Note: The video will be located at the bottom left corner of the screen and will play muted by default when the tour starts.
Facebook Widget
You can integrate the Facebook widget into your space. When set up, the widget chat will pop up at the bottom right corner of the tour.

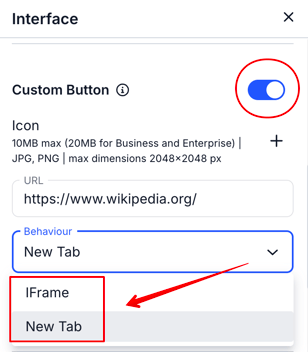

Custom Button
Custom Button (available stating from the Growth plan and above) allows you to direct the tour viewers to a specific webpage. You can personalize the button by selecting an icon (please note the limitations) and choosing how you want the link to be processed: either iFrame (the link opened inside the tour) or New Tab (the link opened in a new browser tab):

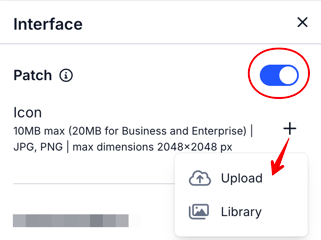

Patch
Patch allows to add a logo (image) to the scan point, the place that you see blurred on the floor. Once your image (JPG, PNG) is uploaded, the scan point with patch will be displayed this way in the tour:
Note: Patch feature is available for paid plans (not available on Basic plan).
Communication and Terms
You can enter your desired information into the Legal Note field, which will be displayed at the top center of the tour:
Terms URL, however, will be displayed in an iFrame when the visitors click on the Terms button at the right bottom corner:
Contact Form
The Contact Form ('get in touch') allows the visitors to enter their personal details into the contact form in order to request the tour owner get in touch with them.
Show contact form toggle enables the Get in touch Tooltip shows the envelope icon that opens a contact form: tooltip of the contact form button:
Note: If the Burger Menu is activated in the tour, the contact form will appear above the location within the Burger Menu:
Important: In order to enable the Get in Touch form, you should assign a Client to your tour. Open the tour Manage section > Info > Tours client > assign the client and save.

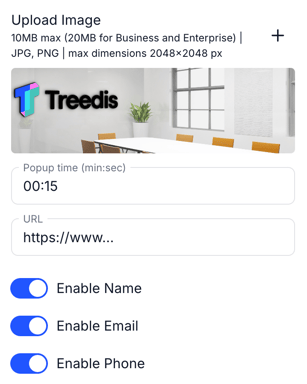

Timed Lead Form
The Timed Lead Form is designed to pop up at a predetermined time during the tour experience. This form allows the visitors to submit their name, phone number, and email address, if you enable it accordingly. Submitted information will be forwarded to the email address associated with the tour owner.
To configure the Timed Lead Form:
- upload an image that will be displayed alongside the contact form (mind the file limits);
- define the specific time (min:sec) at which the form will pop up to visitors on the tour;
- add URL link (optional) that will direct visitors to an external website. When visitors click on the image, it will open the specified website URT in a new browser tab;
- decide on the boxes to enable: name, email, phone number.
Restrictions
- Hide 3D Scans - hide the scan circles on the floor;
- Enable Screenshots - show the screenshot button to allow visitors to take and save the screenshots of the tour;
- Unbranded Tour - remove all branding from the space (specifically to hide the Client's logo);
- Hide Cookie Message - hide the 'cookie' message bar at the bottom of the screen;
- Make Cookie mandatory - make the cookies acceptance mandatory;
- Enable avatar mode - provide the visitors with an option to enter the space with a custom avatar;
- Enable text chat - enable text Chat feature in the tour;
- Social Sharing Button - show the social sharing icon to copy the deep link location on the space and enable sharing the tour link in social media;
- Disable Right Mouse Button - disable the right-click within the 3D tour.
- Show VS Button - enable Hide/Show VS icon in the tour;
- Notes Enabled - enable Notes in the tour.
Interface: V-Commerce Section
(works on tours with V-Commerce add-on activated)
These are the basic settings for the V-Commerce tour:
- The toggle Show store enables a store icon on a sidebar in the tour:
- Hide sidebar configs hides the Settings option on the sidebar;
- Hide sound controls, Hide language select, and Hide subtitles select will disable the corresponding controls in the Settings option:
- If the phone number is set up for the Client and the icon Show sidebar call is enabled - the V-commerce sidebar will include a button that gives an option to call the number on click;
- Show sidebar address will show an icon that opens a location on Google Maps if the tour address is set up:
If you have further questions or need assistance with the settings, please contact us at support@treedis.com
